Mobile Radial Telescopic Stackers For Bulk Materials Conveying
제품 상세 정보:
| 원래 장소: | 중국 |
| 브랜드 이름: | SSI |
| 인증: | manufacture certificate |
| 모델 번호: | 맞춤화됩니다 |
결제 및 배송 조건:
| 최소 주문 수량: | 1 |
|---|---|
| 가격: | US $500,000-1,000,000/ Set |
| 포장 세부 사항: | 나체화 |
| 배달 시간: | 선불제의 영수증 뒤에 있는 6개월 |
| 지불 조건: | L/C (신용장), 인수 인도, D/P (지급도 조건), 전신환, 웨스턴 유니온, 머니그램 |
| 공급 능력: | 40은 / 년에서 설정합니다 |
|
상세 정보 |
|||
| 능력: | 500 t/h | 제품: | 모바일 광선 신축콘베아 벨트 |
|---|---|---|---|
| 그림: | 인터내셔널 | color: | yellow |
| 모터: | ABB | 샌드 블라스팅: | SA2.5 |
| 캐릭터: | 오래갑니다 | 프레임: | 탄소강 |
| 하이 라이트: | Mobile Radial Telescopic Stackers,500 t/h Mobile Radial Telescopic Stackers,Mobile Radial Telescopic Stackers For Bulk |
||
제품 설명

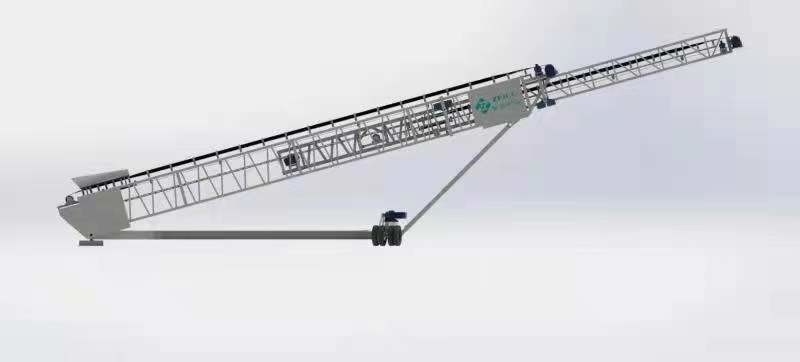

Mobile radial telescopic stackers for bulk materials conveying
A flexible articulation system process for metallurgical raw materials, chemical yards, bulk material terminals, construction aggregates, fuel yards, etc. Through a long-distance tape machine, the front end is connected to the pick-up system and the back end to the stockpile system. The mobile radial telescopic bulk material handling system is one cost-efficient and effective way of stockpiling material in the stockyard.
Mobile Radial Telescopic Belt conveyor Stacker is a new type of belt machine developed for transporting coal, which can connect coal mining machines and various equipment, and is an important linkage to ensure the automatic production operation of coal mining, and can also be used in various terminals and freight transportation, which can be used in mining, coal, metallurgy and other industries to realize long time and long-distance transportation by technical means, and according to the different sites and distances of different coal mines, it can be assembled into a professional horizontal conveyor. Multiple units can be assembled into a professional horizontal or inclined system to meet different sites and different equipment arrangements.
Through reasonable improvements, according to the special characteristics of mines, where a large number of materials are powdery and irregular, mining conveyors must use high-strength conveyor belts to ensure the safety continuity of the conveying process. Using wire rope traction and wire rope core belt conveyor, the belt conveyor for mines uses flame-retardant tape or plastic belt, and the use of plastic belt should have measures to prevent static sparking. Suitable for large and medium-sized mines uphill, downhill, inclined shaft lifting and long-distance horizontal and other major transport industry conveyor
Specification of mobile radial telescopic stacker
| Model | Capacity(t/h) | Belt width(mm) | Speed(m) | Max distance(m) | Power of Motor(kw) |
Diameter of pulley(mm)
|
Diameter of roller(mm) | Max incline angle(°) |
| DTS80/40/2*40S | 400 | 800 | 2 | 800 | 2*40 | 500 | 89 | +18 |
| DTS80/40/2*55S | 400 | 800 | 2 | 800 | 2*55 | 500 | 89 | +18 |
| DTL80/40/90S | 400 | 800 | 2 | 1000 | 90 | 630 | 108 | +18 |
| DTL80/40/2*40 | 400 | 800 | 2 | 800 | 2*40 | 500 | 89 | +18 |
| DTL80/40/2*55 | 400 | 800 | 2.5 | 800 | 2*40 | 630 | 89 | +18 |
| DTL100/63/2*75S | 630 | 1000 | 1.9 | 1000 | 2*75 | 630 | 108 | +18 |
| DTL100/80/160S | 800 | 1000 | 2.5 | 1000 | 160 | 630 | 108 | +18 |
| DTL100/80/2*160S | 800 | 1000 | 2.5 | 1500 | 2*160 | 630 | 108 | +18 |
| DTL120/120/2*160S | 1200 | 1200 | 2.5 | 1000 | 2*160 | 800 | 133/159 | ± 5 |
| DTL120/120/2*200S | 1200 | 1200 | 2.5 | 1000 | 2*200 | 800 | 133/159 | +18 |
| DTL120/150/2*160S | 1500 | 1200 | 3.15 | 1500 | 2*200 | 800 | 133/159 | +18 |
Case1
Mobile radial telescopic stacker for iron ore handling at the site in Africa.
Case2
Mobile radial telescopic stacker for a pile of gravel handling at the opencast.
case 3
Mobile radial stacker for coal loading into the vessel at the port in southeast country.
Photos of our factory
